Electrical boxes

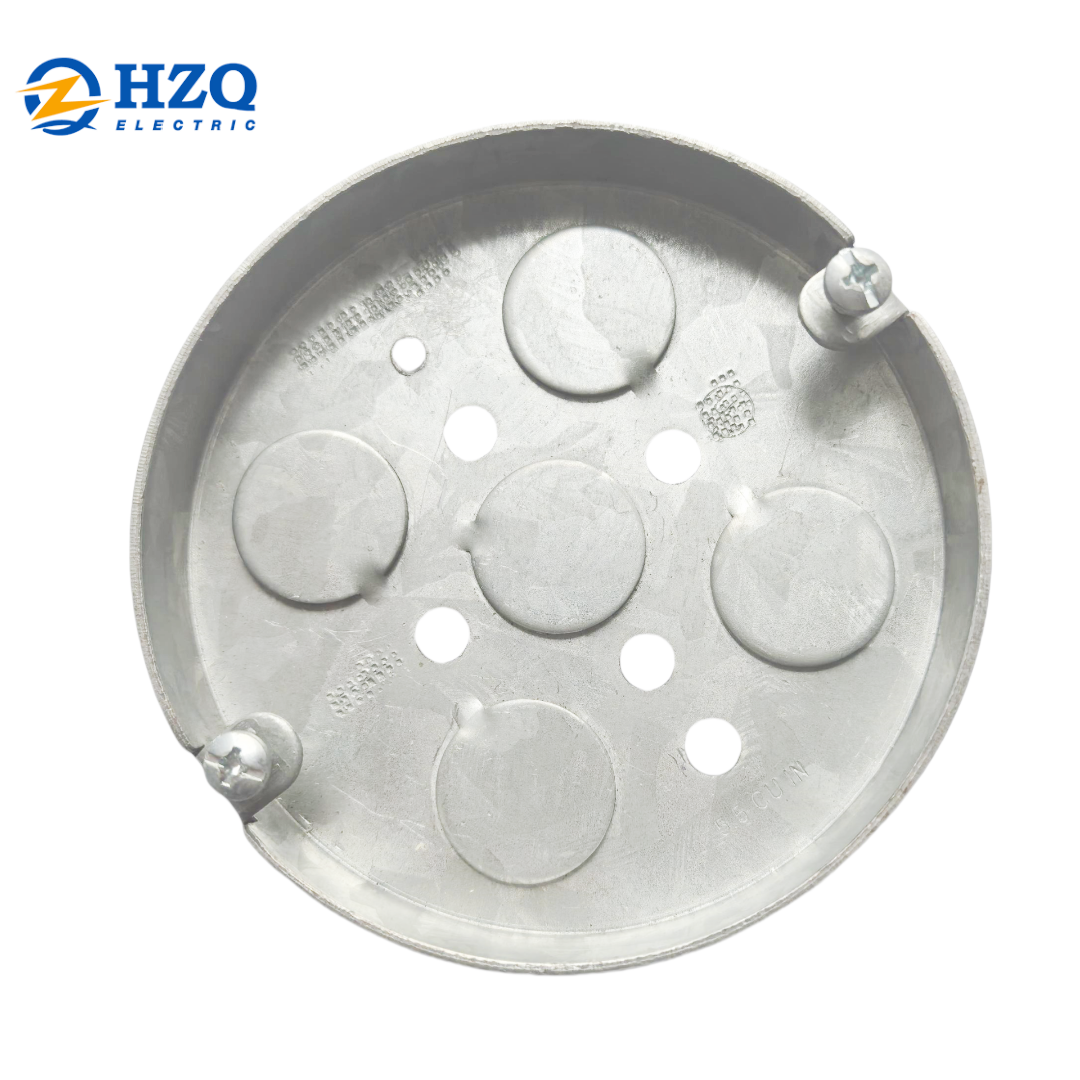

  • 3-1/2 Round pan – 1/2 deep – drawn

    Features• Pancake box-fixture ready, galvanized steel raised 5/8″• Steel plate serves as cover for outlet or concrete boxApplications• Topaz pancake ceiling box can be used to install ceiling fans, lighting fixtures and other electrical devicesStandard Material• Galvanized steelPrevious:4X2 Handy box cover-2-5/16 wind x 4-3/16 lengthNext:3-1/2 Round pan – 3/4 deep – drawn
  • 3-1/2 Round pan – 3/4 deep – drawn

    Features• Pancake box-fixture ready, galvanized steel raised 5/8″• Steel plate serves as cover for outlet or concrete boxApplications• Topaz pancake ceiling box can be used to install ceiling fans, lighting fixtures and other electrical devicesStandard Material• Galvanized steelPrevious:3-1/2 Round pan – 1/2 deep – drawnNext:4 Round ceiling pan – 1/2 – drawn
  • 4-11/16 Square extension – 2-1/8 deep – drawn

    Features• 2-1/8″ deep• 44 cubic inches 2-1/8″ deepApplications• Increases wiring capacity• Provides access for additional conduit runs and electrical wireStandard Material• Galvanized steelPrevious:4-11/16 Square boxes – 2-1/8 deep- weldedNext:Multi – device switch boxes – 2-1/2 deep – welded

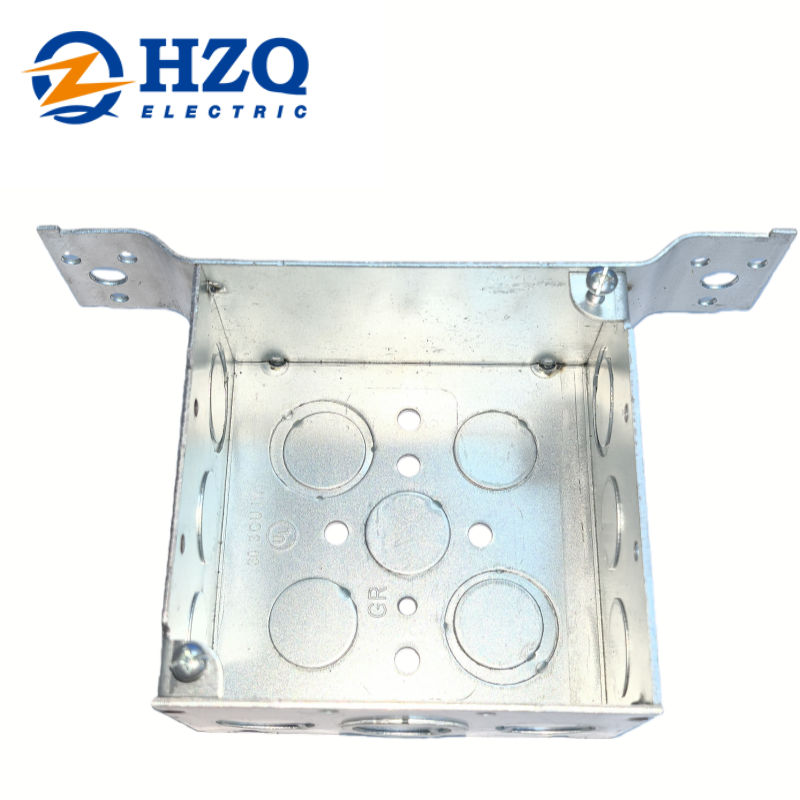

  • 4-11/16 Square boxes – 2-1/8 deep- welded

    Features• Welded• 2-1/8″ deep• Available in multiple KO sizes, with eccentric or concentric KOs, raised ground emboss with installed 10/32 ground screw and pigtail where notedApplications• 4-11/16″ square welded junction boxes are used in a variety of industrial applications where larger sized conductors or wiring devices are needed and more volume is required• Can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices. 2-1/8″ deep boxes offer extra cubic capacityStandard Material• Galvanized steelPrevious:4-11/16 Square boxes and extension rings
  • 4-11/16 Square boxes and extension rings – 1-1/2 deep – drawn

    Features• 1-1/2″ deep• 31 cubic inches 1-1/2″ deepApplications• Increases wiring capacity• Provides access for additional conduit runs and electrical wireStandard Material• Galvanized steelPrevious:4 Square two device switch box – 2-18 deep – drawnNext:4-11/16 Square boxes – 2-1/8 deep- welded
  • 3 × 2 Switch box – 2-3/4 deep

    Features• Boxes – 2-3/4″ deep• Boxes – 14 cubic inches• Available with adjustable plaster ears, brackets, NM clamps and MC clamps where noted• GangableApplications• 3″x2″ Switch boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices• Switch boxes are used to bring power to a number of electrical devices where multiple conductor runs are split in two or more directions• The adjustable plaster ears allow for an easy “cut in” when switches or outlets need to be addedStandard Material• Galvanized steelPrevious:3 × 2 Switch box – 2-1/2 deepN
  • 3 × 2 Swith box – 3-1/2 deep

    Features• Boxes – 3-1/2″ deep• Boxes – 18 cubic inches• Pre-assembled with 10-32 ground screw & 7-1/2″ Long #12AWG solid pigtail*• Available in multiple KO sizes with adjustable plaster ears, brackets, NM clamps and MC clamps where noted• GangableApplications• 3″x2″ Switch boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices• Switch boxes are used to bring power to a number of electrical devices where multiple conductor runs are split in two or more directions• The adjustable plaster ears allow for an easy “cut in” when switches or ou
  • 3-12 Octagon box and extension ring -1-1/2 deep – drawn

    1.Applications: These octagon boxes are used when installing ceiling or wall lighting fixtures. Extension rings are available to provide more box volume when additional wiring support is required. These junction boxes can also be used as an outlet box for a surface conduit or convenience outlet.2.Advantages: Octagon boxes and extension rings are made with a versatile combination head 8-32 screw. These octagon boxes allow economical box installation when minimum wire capacity is required.3.Field Names:30 box,30 extension ring,octagon box, extension box, 3-1/2″ octagon junction box, octagon elec
  • 3 × 2 Switch box – 2-1/2 deep

    Features• Boxes – 2-1/2″ deep• Boxes – 12.5 cubic inches• Available with adjustable plaster ears, brackets, NM clamps and MC clamps where noted• GangableApplications• 3″x2″ Switch boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices• Switch boxes are used to bring power to a number of electrical devices where multiple conductor runs are split in two or more directions• The adjustable plaster ears allow for an easy “cut in” when switches or outlets need to be addedStandard Material• Galvanized steelPrevious:3 × 2 Switch box – 2 deepNex
  • 4 Octagon box and extension ring – 1-12 deep – drawn

    Features• Drawn• 1-1/2″ deep• 15.8 cubic inches• Available in multiple KO sizes, with or without concentric KOs and raised ground emboss with installed 10/32 ground screw where notedApplications• 4″ octagon junction boxes are used to install ceiling and wall lighting fixtures, fans or convenience outlets and devices• Octagon boxes are used to bring power to an electrical device where multiple conductor runs are split in two or more directionsStandard Material• Galvanized steelPrevious:3-12 Octagon box andextension ring -1-1/2 deep – drawnNext:4 Octagon box – 2-18 deep – drawn

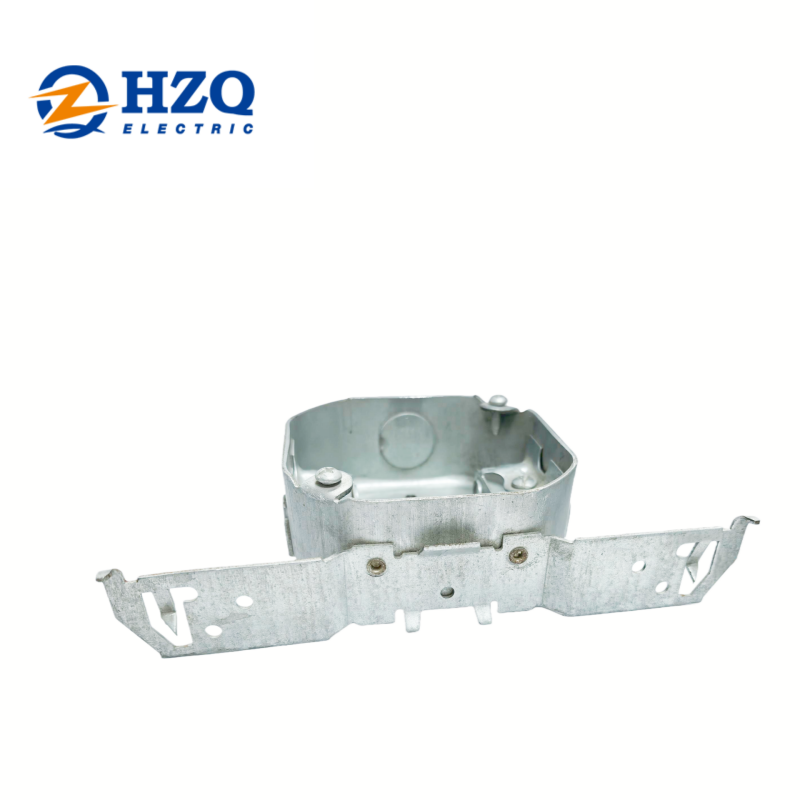

  • 4 Octagon box – 2-18 deep – drawn

    Features• Boxes – Drawn• Boxes – 2-1/8″ deep• Boxes – 22.8 cubic inch extra cubic capacity• Available in multiple KO sizes, with or without concentric KOs and raised ground emboss with installed 10/32 ground screw where notedApplications• 4″ octagon junction boxes are used to install ceiling and wall lighting fixtures, fans or convenience outlets and devices• Octagon boxes are used to bring power to an electrical device where multiple conductor runs are split in two or more directionsStandard Material• Galvanized steelPrevious:4 Octagon box and extension ring – 1-12 deep – drawnNext:4 Square b

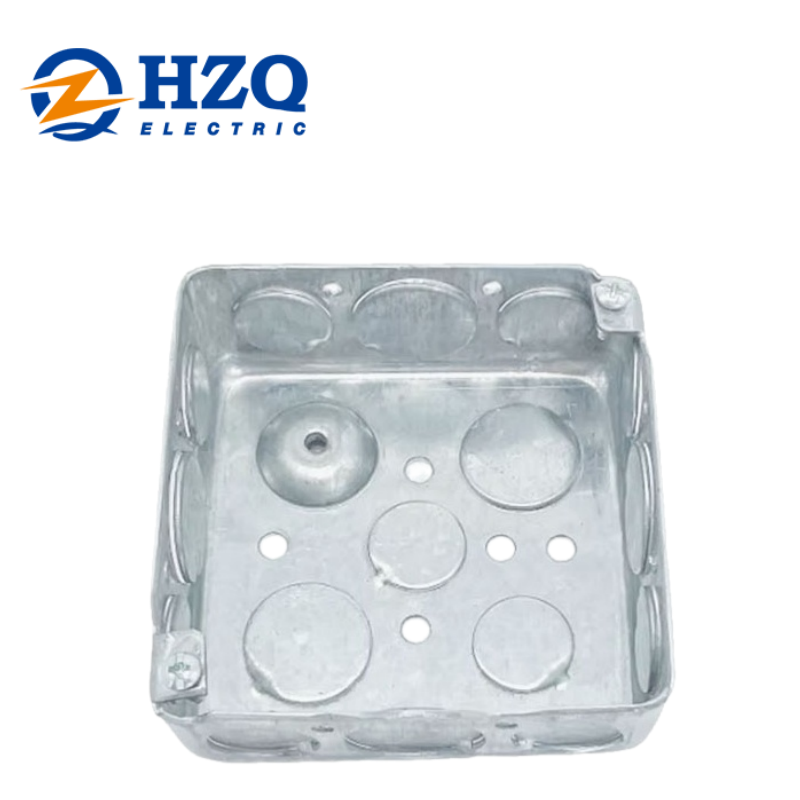

  • 4 Square box- 1-14 deep – drawn

    Features• Drawn• 1-1/4″ deep• Available in multiple KO sizes with raised ground emboss with installed 10/32 ground screw and pigtail where notedApplications• 4″ square drawn junction boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices.• Square boxes are used to bring power to a number of electrical devices where multiple conductor runs are split in two or more directionsStandard Material• Galvanized steePrevious:4 Octagon box – 2-18 deep – drawnNext:4 Square box – 1-12 deep – drawn
