Bridle rings

  • Bridle rings with machine screw thread

    1. Product description: Bridle ring with machine screw2. Material: Steel, zinc plated3. Loop Size: 1/4”,3/4”,1”,1-1/4”,1-1/2”,2”,4”4. Leg Thread type:  1/4-20   10-24  machine screw5. Loading capacity:  50lbs6. Appliation : Low voltage ,cable management 7. Please go to download page to download DATA SHEET of the bridle ringsPrevious:J hook retaining clipNext:Bridle rings with wood screw thread
  • Bridle rings with wood screw thread

    1. Product description: Bridle ring with wood screw2. Material: Steel, zinc plated3. Loop Size: 1”, 1-1/4”, 1-1/2”, 2”, 4”4. Leg Thread type:  #16×1” wood screw5. Loading capacity:  50lbs6. Appliation : Low voltage ,cable management 7. Please go to download page to download DATA SHEET of the bridle ringsPrevious:Bridle rings with machine screw threadNext:Screw-mount bridle ring
  • Screw-mount bridle ring

    1. Product description: Screw-Mount Bridle ring2. Material: Steel, zinc plated3. Loop Size: 1-1/2”,2”,4”4. Loading capacity:  50lbs5. Appliation : Low voltage ,cable management 6. Please go to download page to download DATA SHEET of the bridle ringsPrevious:Bridle rings with wood screw threadNext:Bridle rings with heavy load magnetic
  • Snap-on bridle ring data-cable saddle

    1. Product description: Snap-on yellow saddle for bridle ring2. Material: plastic3. Loop Size: 1-1/2”,2”4. Loading capacity: 50lbs5. Appliation : Low voltage ,cable management 6. Please go to download page to download DATA SHEET of the bridle ringsPrevious:Bridle rings with heavy load magneticNext:Bridle ring with data cable saddle

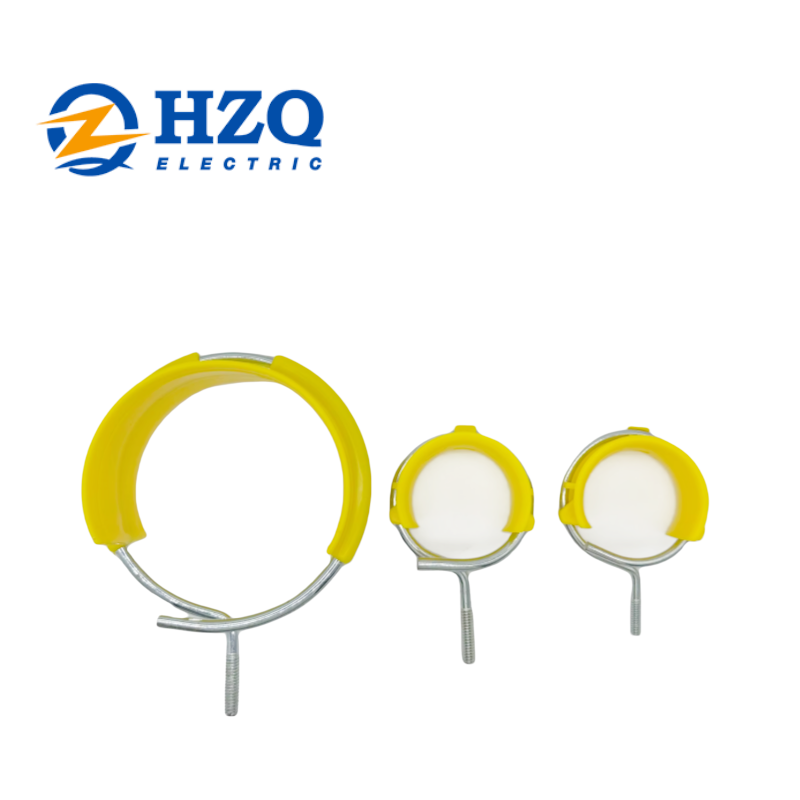

  • Bridle ring with data cable saddle

    1. Product description: Bridle ring with machine screw, yellow plastic saddle 2. Material: Steel, zinc plated3. Loop Size: 1-1/2”,2”,4”4. Leg Thread type:  1/4-20 machine screw5. Loading capacity: 50lbs6. Appliation : Low voltage ,cable management 7. Please go to download page to download DATA SHEET of the bridle ringsPrevious:Snap-on bridle ring data-cable saddleNext:Wood screw bridle ring with data cable saddle
  • Wood screw bridle ring with data cable saddle

    1. Product description: Bridle ring with wood screw, yellow plastic saddle 2. Material: Steel, zinc plated3. Loop Size: 1-1/2”,2”4. Leg Thread type:  #16×1” wood screw5. Loading capacity:  50lbs6. Appliation : Low voltage ,cable management 7. Please go to download page to download DATA SHEET of the bridle ringsPrevious:Bridle ring with data cable saddleNext:Screw-mount bridle ring with data cable saddle
  • Screw-mount bridle ring with data cable saddle

    1. Product description: Screw-Mount Bridle ring with yellow plastic saddle2. Material: Steel, zinc plated3. Loop Size: 1-1/2”,2”4. Loading capacity:  50lbs5. Appliation : Low voltage ,cable management 6. Please go to download page to download DATA SHEET of the bridle ringsPrevious:Wood screw bridle ring with data cable saddleNext:316 Stainless steel bridle ring
  • 316 Stainless steel bridle ring

    1. Product description: Bridle ring with machine screw2. Material: 316 stainless steel3. Loop Size: 1”, 1-1/4”, 1-1/2”, 2”, 4”4. Leg Thread type:  1/4-20 machine screw5. Loading capacity:  50lbs6. Appliation : Low voltage ,cable management 7.Please go to download page to download DATA SHEET of the bridle ringsPrevious:Screw-mount bridle ring with data cable saddleNext:Metal Staples
